8 Farben Central Flexo Druckmaschine Comexi FJ 2108

– 8 color Central Drum
– Geared press with 5mm pitch
– Quick Sleeve and Anilox changed from the side
– AVT Print Vision Jupiter ( New in 2009 / 120.000 euro )
– AVT’s Jupiter provides a comprehensive process control and automatic defect detection solution.
– Automatic viscosity control
–
BST Web guide infeed
BST Web guide outfeed
–
Web widht: 1270 mm
Print width: 1220 mm
Repeat length: 350 – 850 mm
Plate thickness: 2.54mm
Mechanical speed: 300 m/min.
Printing speed: 300 m/min.
System: Geared press, pitch 5mm

Printing group positionning: Electric
Side positionning Electric
–

Anilox roller Sleeve side loading
Printing cylinder Sleeve with side loading
–
Materials
Paper : 20 – 125 gr
LDPE : 25 – 150 µ
OPP : 12 – 40 µ
PET : 12 – 30 µ/
Strip tension ᐸ= -1 daN
–

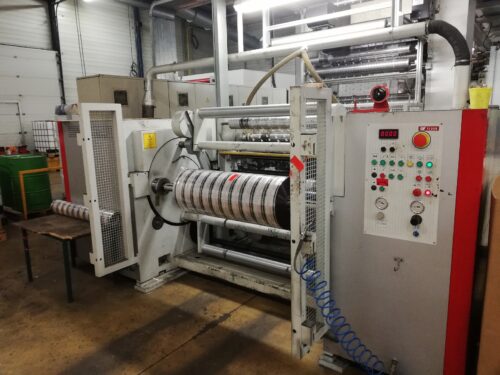

Unwinder type: Non-stop
Unwinder reel max diameter: 800 mm
Core diameter 2 x 76 mm – 2 x 152 mm
–
Rewinder type: Non-stop
Core diameter: 2 x 76 mm
Rewinder reel diameter 800 mm
–
Drying system Gas – 2 burners
between colors and drying tunnel
8 x pneumatic ink pumps
9 x Chamber doctor blades
Inline slitting :
4 knives. Including suction for the edges

– List of printing sleeves and air mandrels

Sleeves and gears :
8 x370,380,400,420,440,460,500,6OO,620 mm
4 x 480 mm
6 x 635,650,670 mm

List of Anilox or anilox mandrels

Anilox Sleeves = 5 x280 L / 2×220 L , 2×160 L, 2×140 L & 1×80 L
